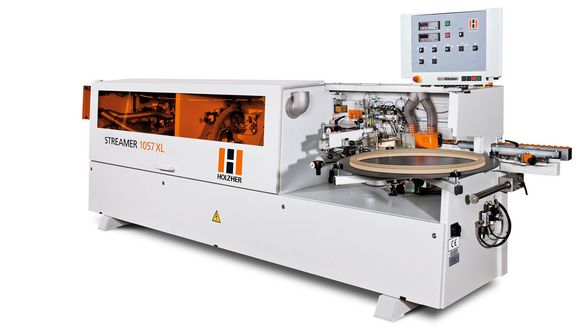

Edgebander STREAMER 1057 XL: Complete machining including corner rounding and 3 finishing units

The Streamer 1057 edgebander as entry model for professional edgebanding

The STREAMER 1057 XL edgebander is based on the successful STREAMER 1057 model with exclusive add-on features. It offers high tech in minimum space and concentrates on the significant aspects for high quality edgebanding. The additional copy cutter unit supplements the performance range; postformed profiles are also possible.

The STREAMER 1057 XL makes complete machining including corner rounding possible with three standard finishing units: a mechanical radius scraper, an application-controlled flat scraper as well as a buffing unit. A spraying unit to prevent adhesion of any glue or contamination residues or remove any already present is available as an optional feature only for the 1057 XL.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Here is what the HOLZ-HER STREAMER series offers

Here is what the HOLZ-HER STREAMER 1057 XL offers

Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

STREAMER Series Brochure (PDF, 2 MB)

Technical data

Open table


Technical Details

We know what you need: The HOLZ-HER control

With our clear controls, your HOLZ-HER edgebander is simple to operate intuitively.

Too bad everything is not as easy to operate as our HOLZ-HER controls.

With our clear controls, your HOLZ-HER edgebander is simple to operate intuitively.

  • The HOLZ-HER GluJet system is equipped with precise temperature control for glue application over two heating circuits.
  • Simple edge feeder switch-over from cut-length to coil edging.
  • Trimming unit can be pivoted pneumatically with control panel (optional feature).
  • Selection switch for optional flat scraper (ON/OFF).

Edging feed

Edging feed
Edging feed

Fully automatic, user-friendly feeder for coiled edging as well as single strip feeder. Gentle material handling with transport belts for edging transport and automatic edge recognition.

An edging separator is available (as an option) for practical processing of packages of edging strips.

Jointing cutter unit - 45 (60) mm

Jointing cutter
For perfect edge appearance and top quality, all HOLZ-HER edgebanders are equipped with diamond tipped cutters.
For perfect edge appearance and top quality, all HOLZ-HER edgebanders are equipped with diamond tipped cutters.

Perfect preparation

Cut edgings often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process.

For perfect edge appearance and top quality, all HOLZ-HER edgebanders are equipped with diamond tipped cutters with integrated chip evacuation as well as high concentricity and long service life. The jointing cutters have patented purging holes to effectively prevent double machining, thus increasing the service life significantly. In addition a height adjustment feature is included for optimum utilization of the cutters.

  • Optionally available with working height of 60 mm.

The most flexible glue application system on the market

GluJet - The most flexible glue application system on the market

Heat-up, glue change and cleaning require only 3 minutes each

No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Invisible joints with PUR glue, which can also be used in wet areas, are an obvious choice for HOLZ-HER customers.

Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.

Pressure unit

Pressure unit
Pressure unit

High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller motor-driven, two subsequent pressure rollers.

Pneumatic, application-controlled pressure unit (optional).

Trimming unit - 60 mm

Pneumatic trimming unit - 60 mm
Trimming unit pneumatic edgebanding - 60 mm

For straight or chamfered trimming on thin edging; unit pivots manually to 10 degrees.

  • With 60 mm working height, pivots pneumatically.
    High quality version with stable cast stand and two sawing motors each on two guides.

Cutter unit

Pneumatic cutter unit

Multifunction cutter unit for flush cut on edging with thickness up to 6 mm, radiuses up to 3 mm.
Including quick adjustment flush / radius as well as diamond tipped tools.

Copy cutter unit - 60 mm

Copy cutter unit
Copy cutter unit

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

  • Diamond tipped tools for long service life.
  • Integrated chip collection in tool.
  • Working height of 60 mm.

Scraper unit for perfect finishing

Scraper unit, HOLZ-HER Streamer edgebander
Scraper unit
Streamer 1057XL edgebander

Perfect finish – generous finishing area.

  • For perfect smoothing of radiuses and chamfers on plastic edging.

Flat scraper with plunge control

Flat scraper for HOLZHER Streamer 1057 XL for perfect finishing
Flat scraper for perfect finishing on Streamer 1057 XL edgebanders

Perfect finish – generous finishing area.

  • The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Buffing unit

Buffing unit for polishing work during finishing - HOLZHER Streamer edgebanders
Buffing unit, Streamer edgebanders - no more manual finishing work

Perfect finish – generous finishing area.

  • Polishing for maximum gloss; for complete finishing.

Front and rear spraying units

Spraying unit for removing glue and contamination residues during edgebanding - HOLZHER Streamer 1057 XL
Spraying unit for Streamer 1057 XL - prevents contamination residues from edgebanding

A release agent is sprayed on to a precisely defined area by special spray nozzles in the entry area. This prevents any glue or contamination residues from adhering These glue and contamination residues are removed reliably by the spraying unit (for cleaning agent) in the discharge area in combination with the buffing unit (available as option for 1307 XL | 1308 XL).

  • Optional features for the STREAMER 1057 XL
